ADU 1000 – 2B/2-1/2B – #A1000B2B2-1/2-1

Description

Plan Details

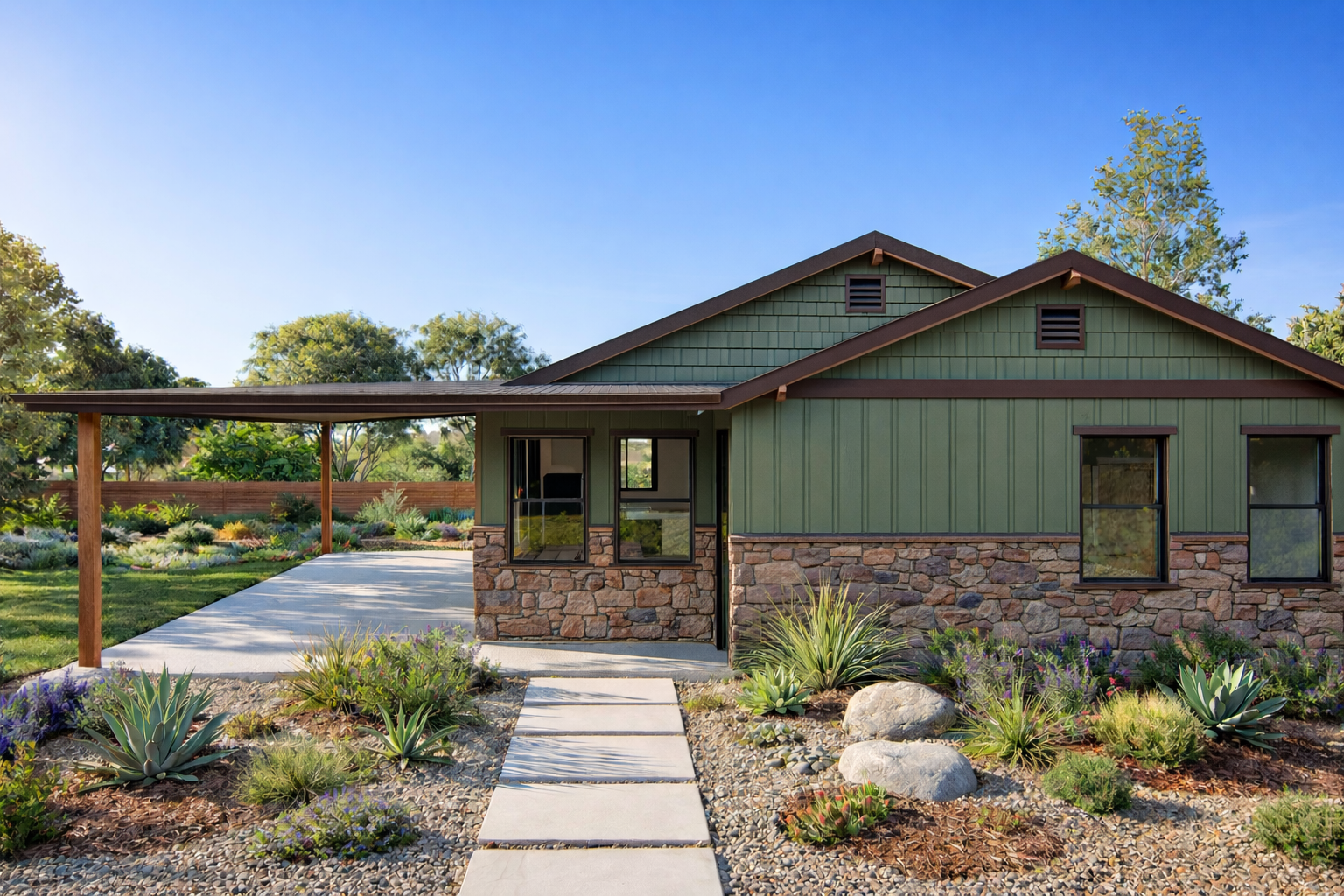

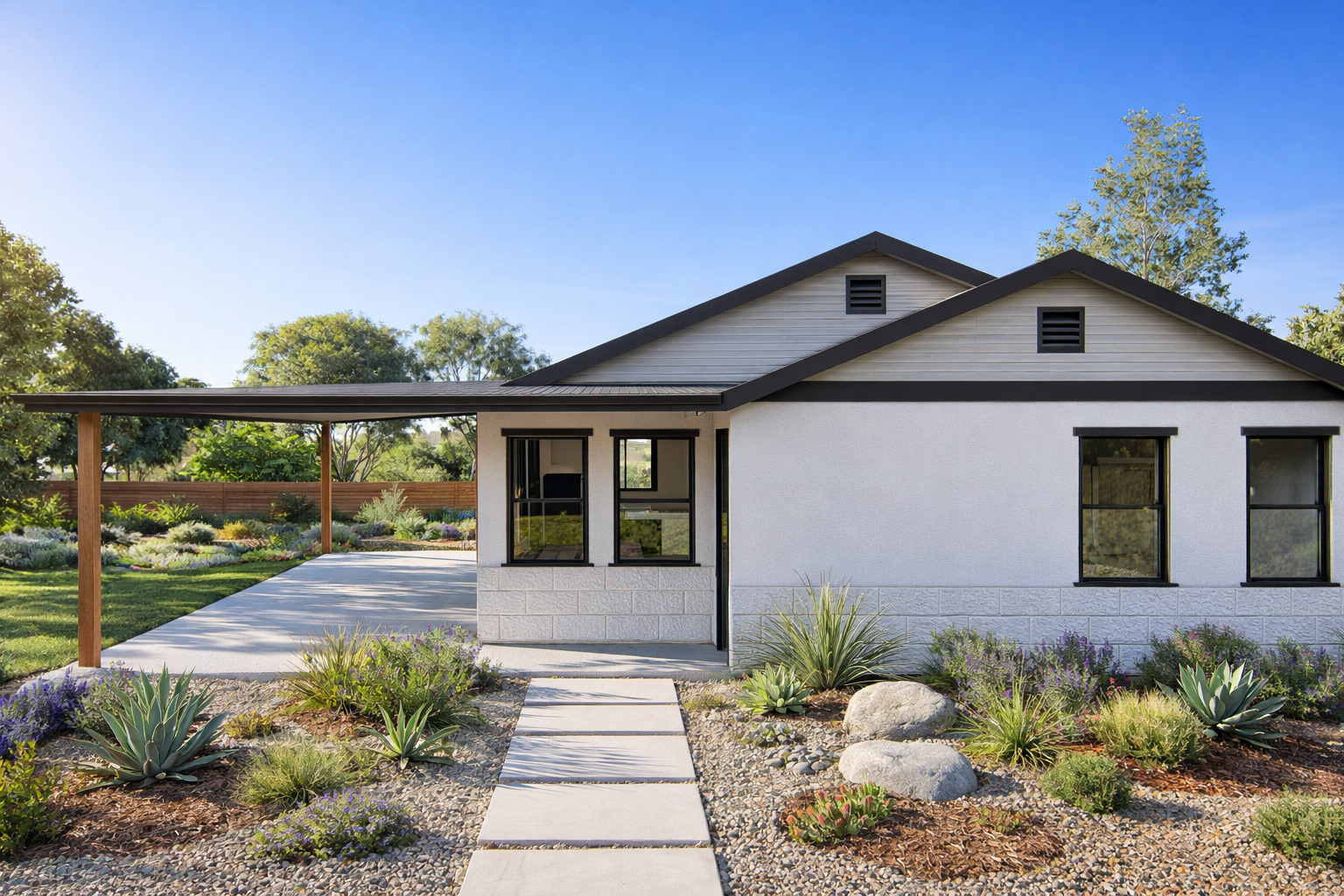

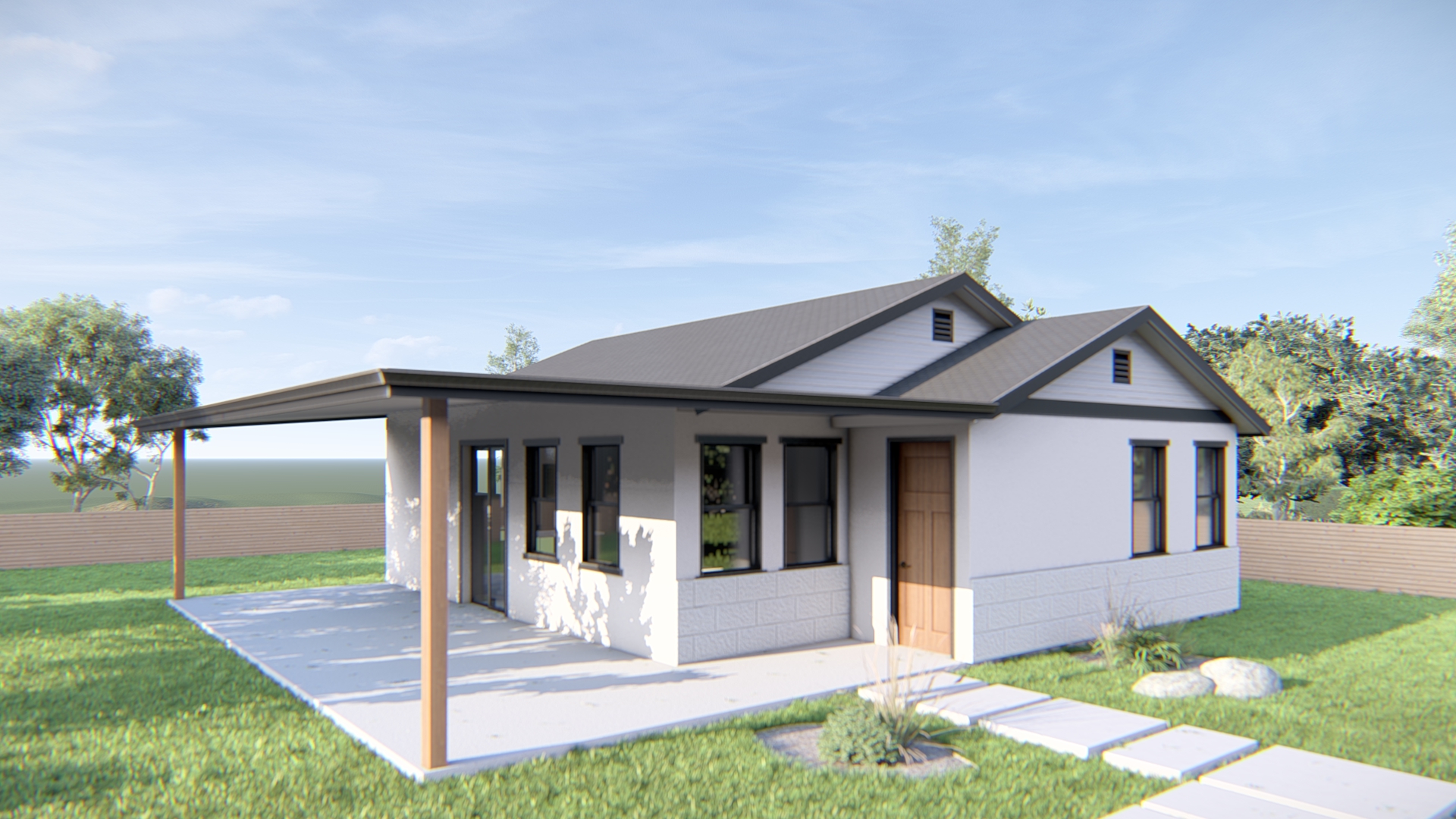

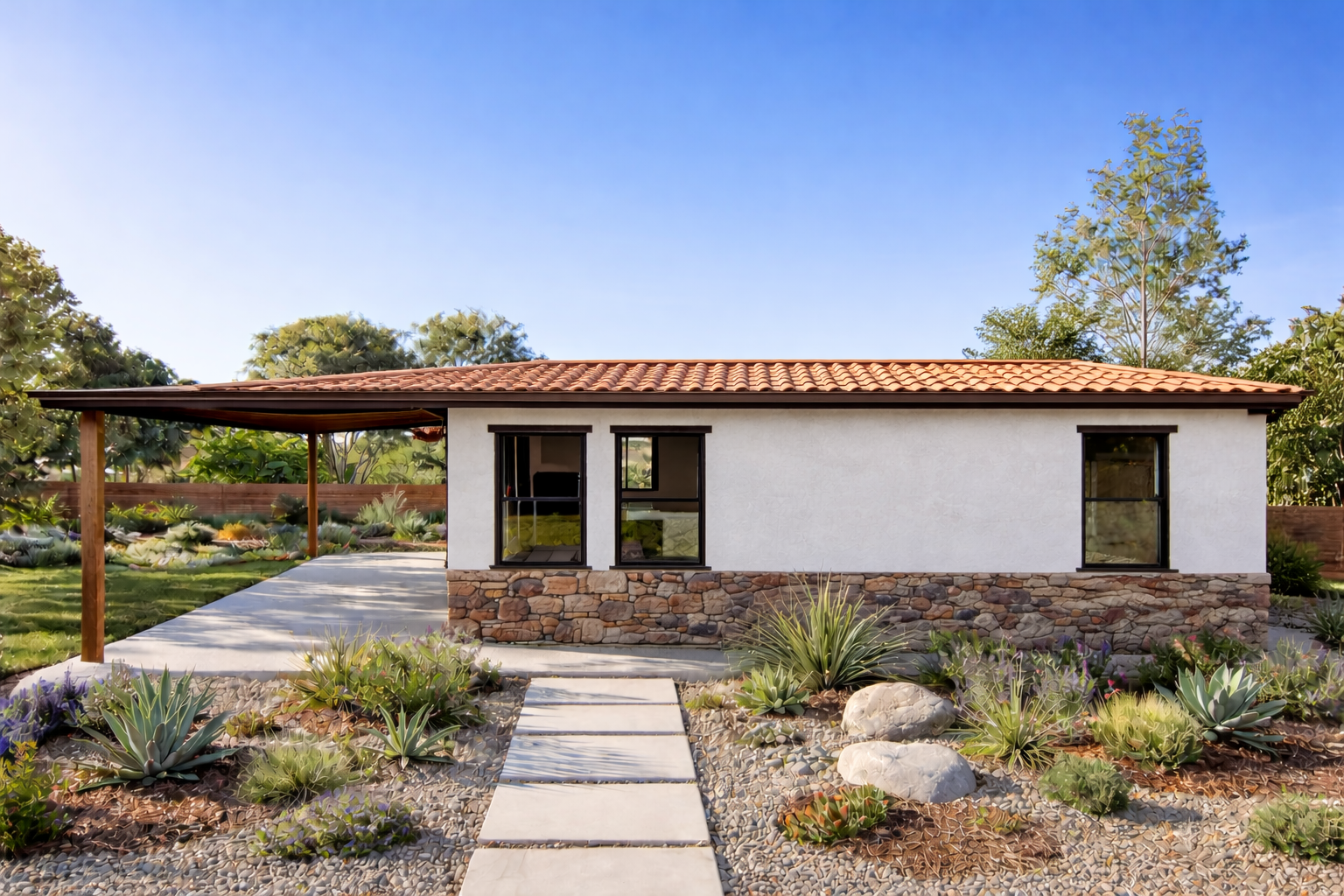

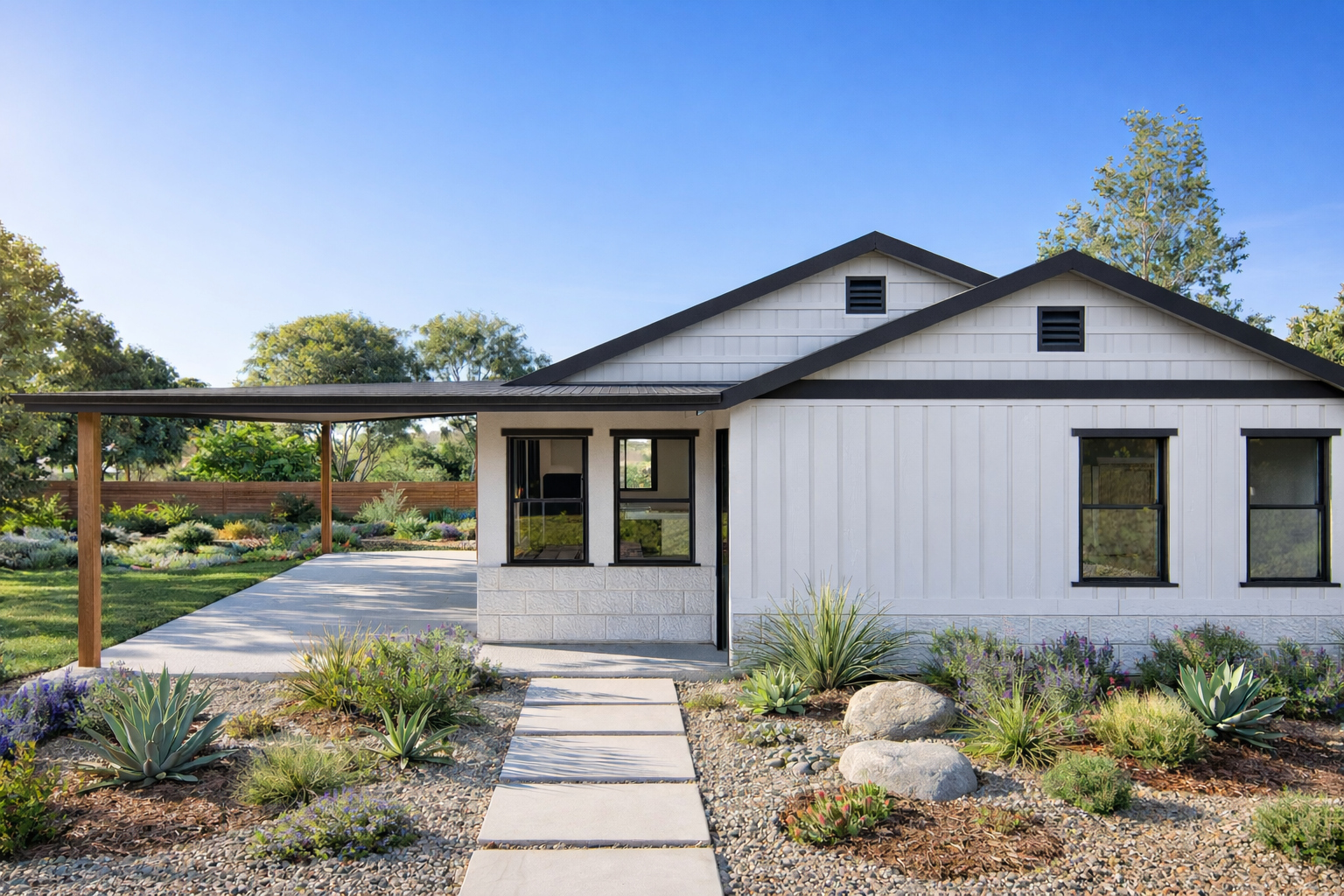

• This modern farmhouse style ADU house plan offers you 1000 square feet of living space with 2 bedroom and 2,5 bathroom
• The Dimensions of the project 40′-8″ x 35′-6″.
• All home plans on our site can be modified.

What’s Included

• Covered Page
• Brief Specification
• Green Code Comply
• Site Plan

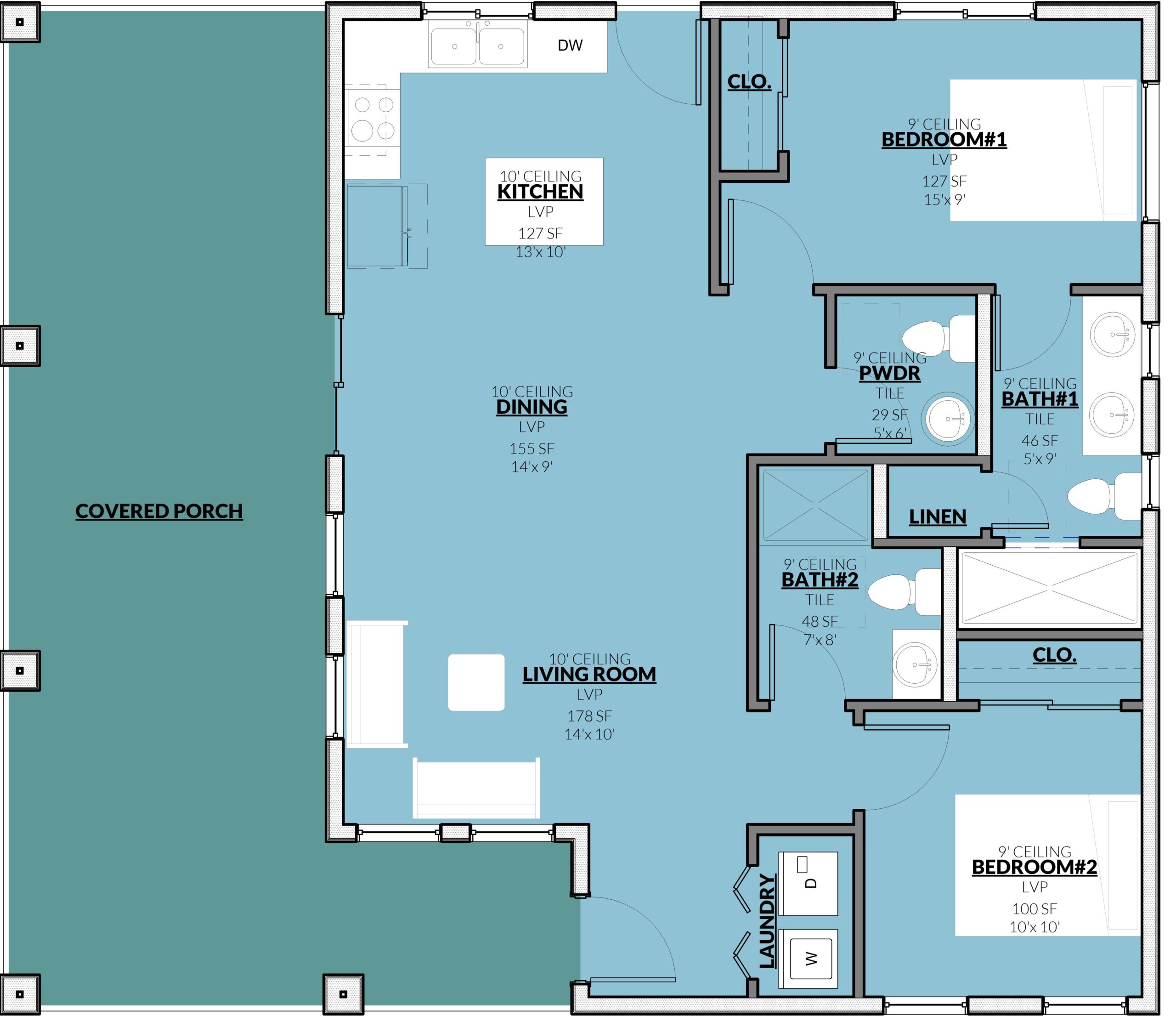

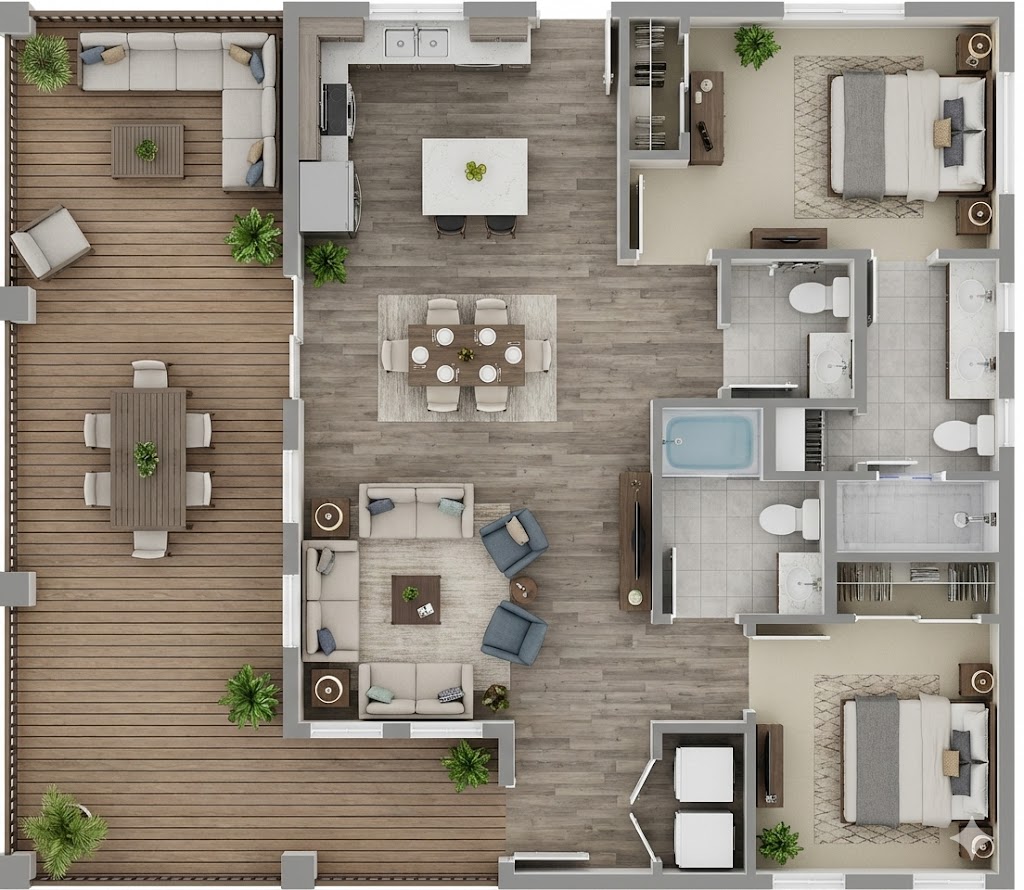

• Floor Plan
• Elevation
• Specification
• Sections
• Electrical Plan
• Architectural Details
• Foundation Plan with the Brace Wall System (Structural calcs per request)
• Structural Notes (Standard)
• Structural Details (Standard) Perspective Method

What’s NOT included

• Architectural or Engineering Stamp (If required, done locally)
• Mechanical Drawings (location of duct work, heating and air equipment – handled by subcontractors)

Specification List

• Heat pump water heater
• Room mini split system
• Microwave Hood
• Bathroom Fan
