Description
Plan Details

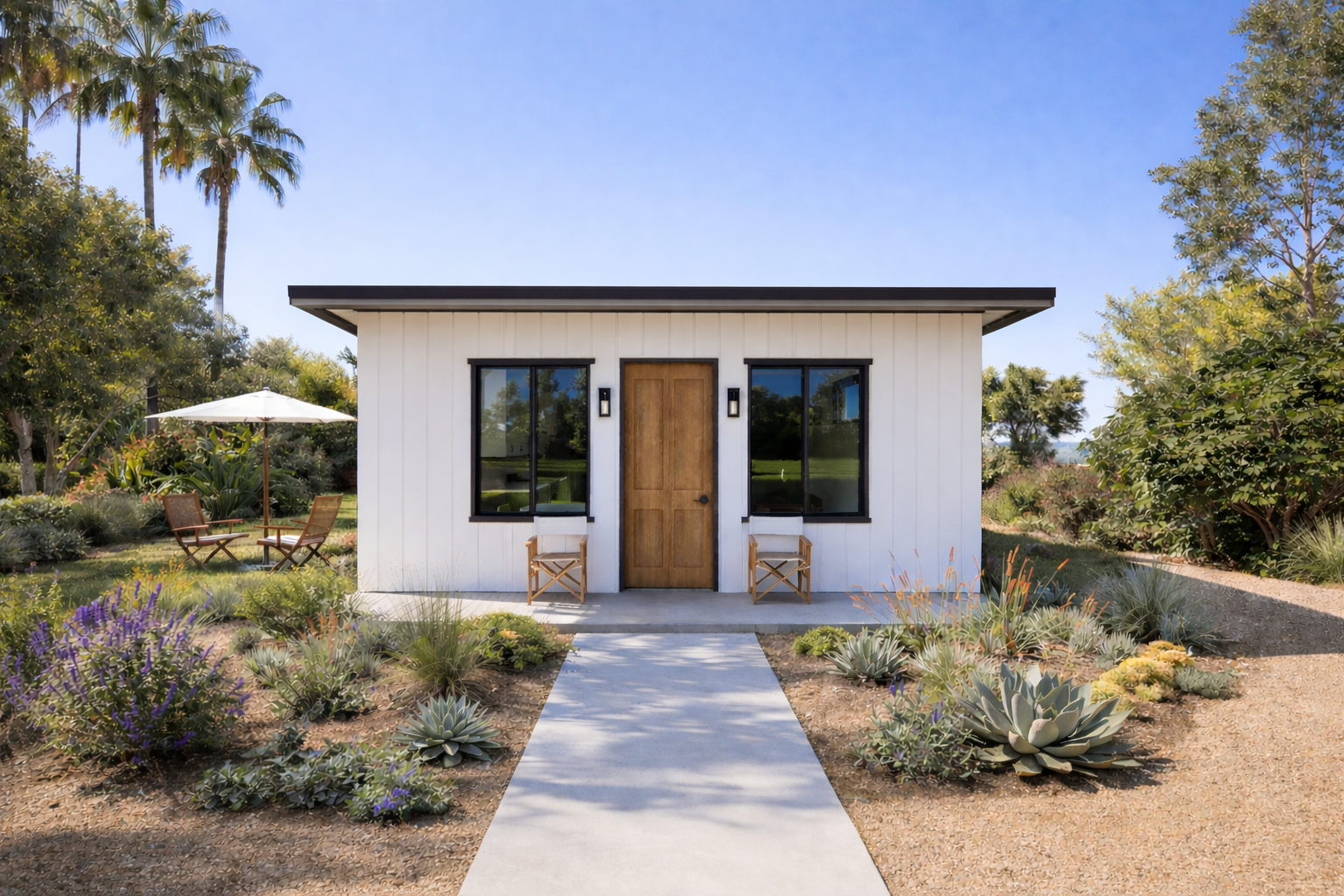

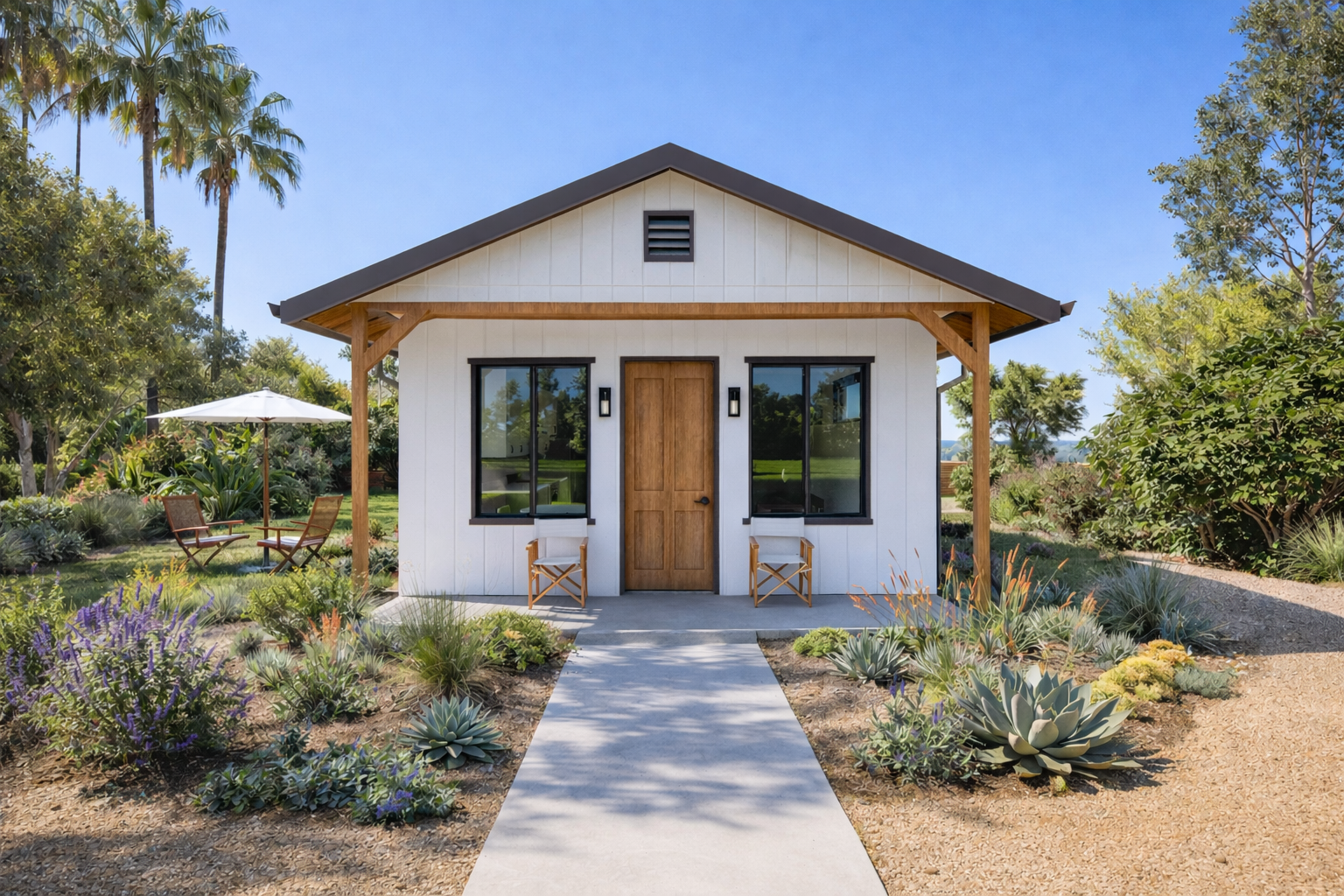

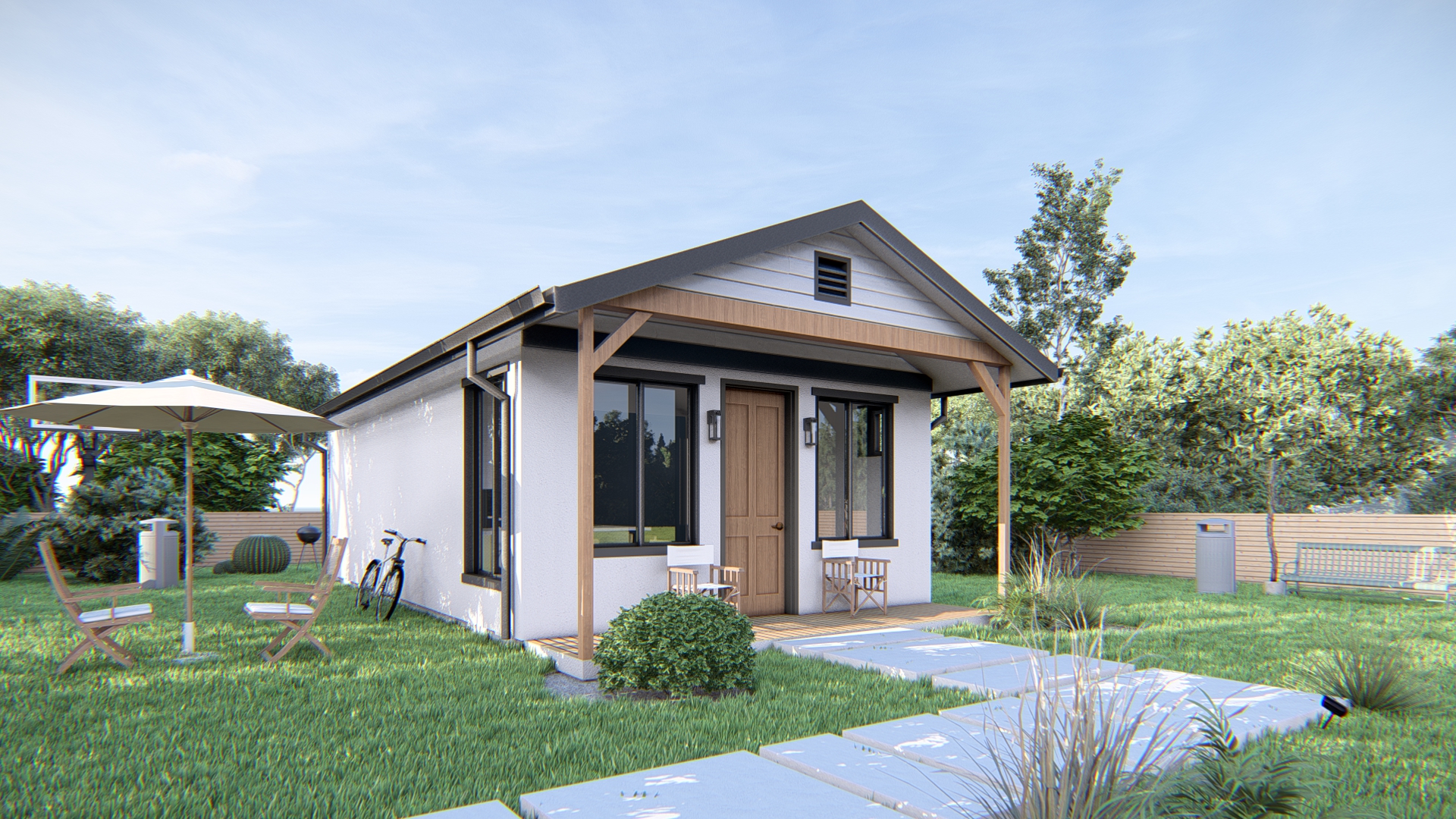

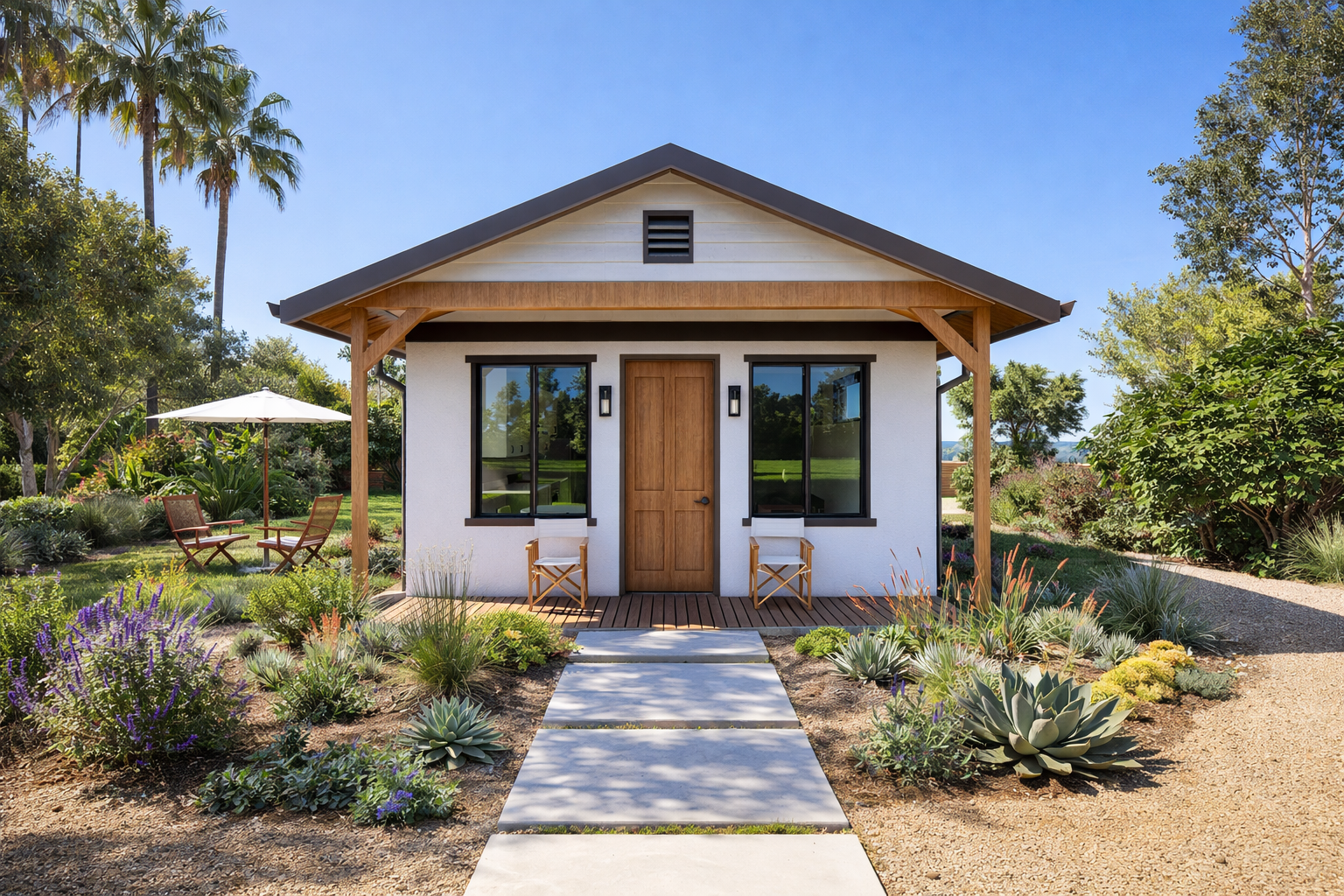

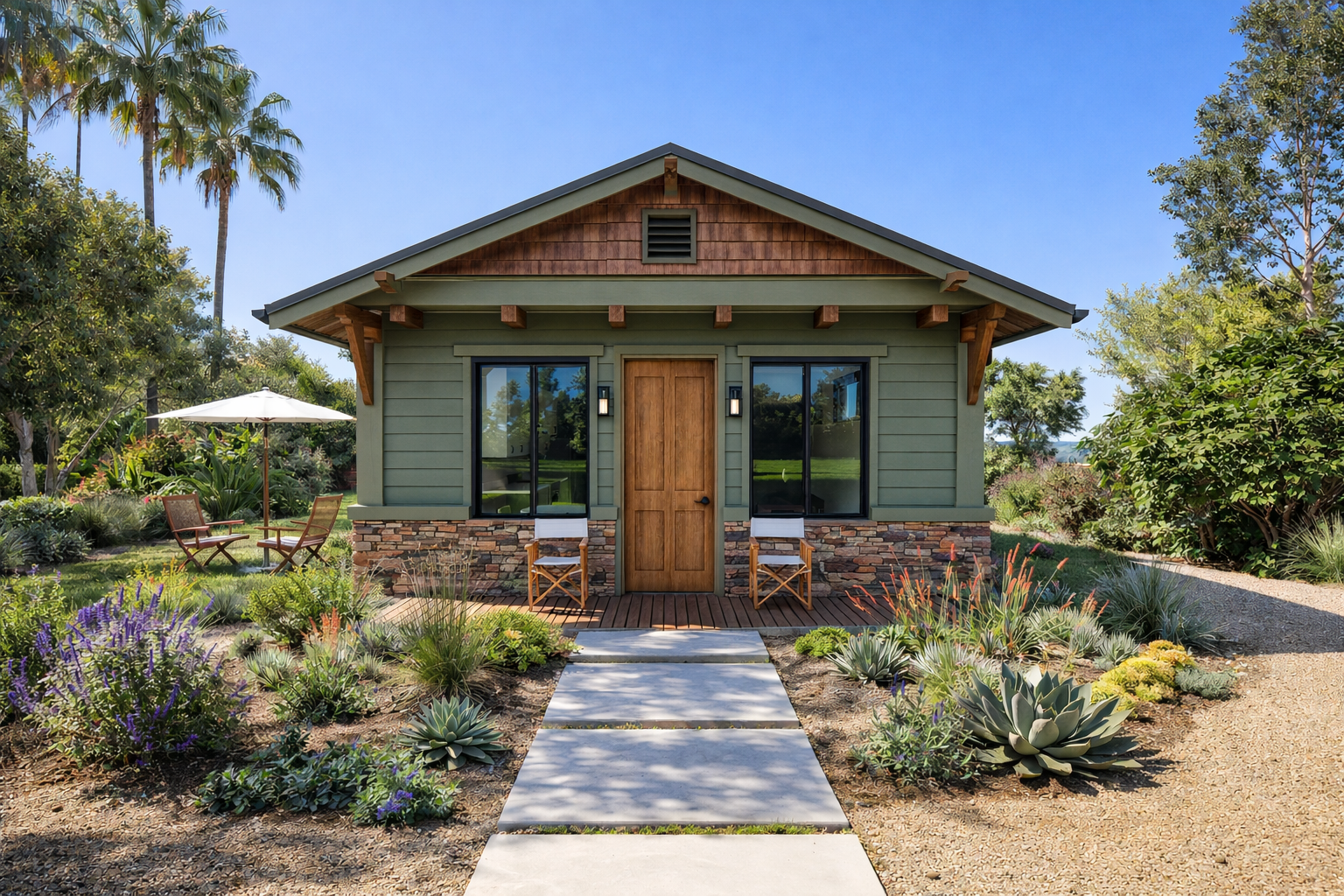

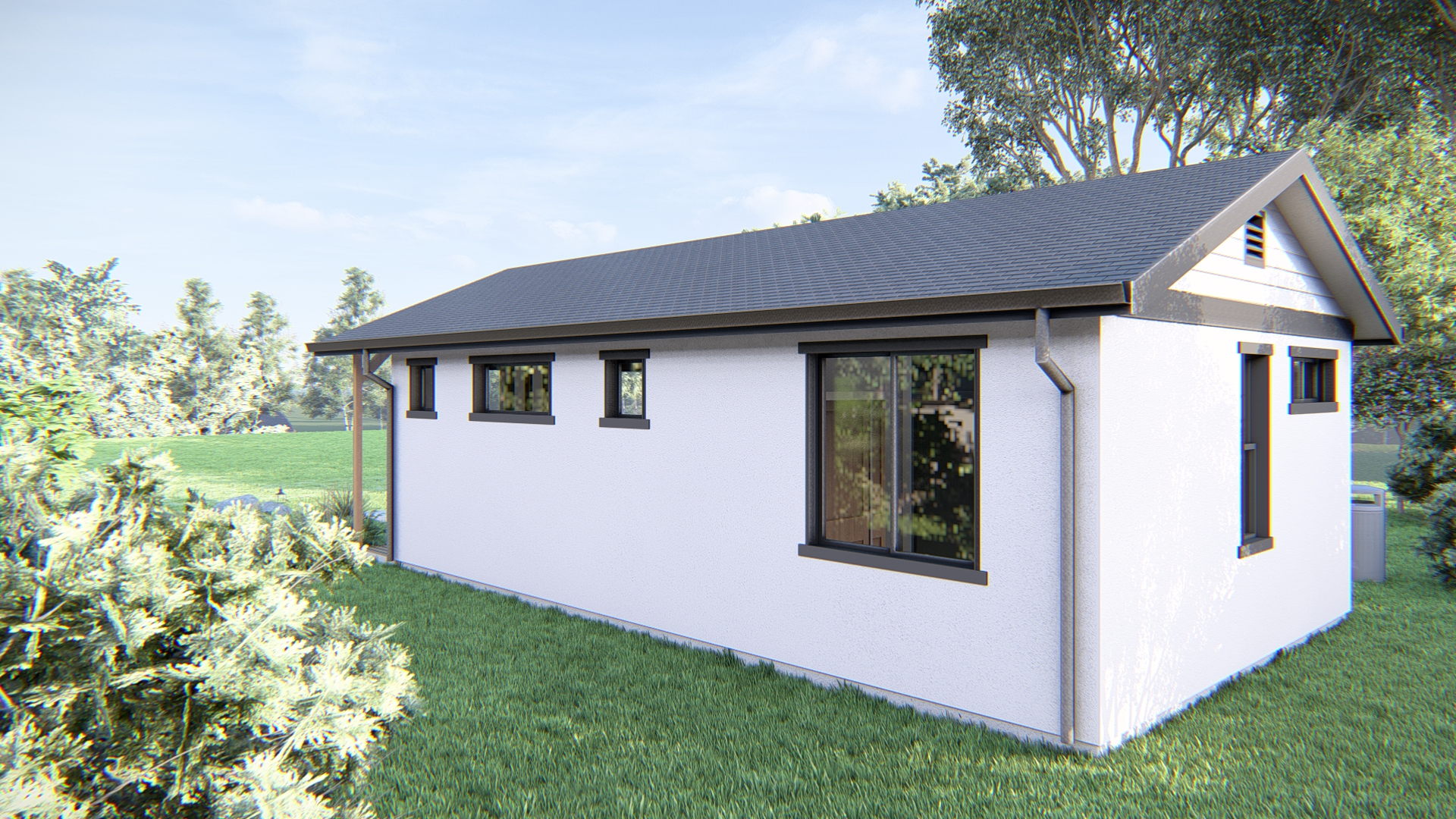

- This modern farmhouse style ADU house plan offers you 510 square feet of living space with 1 bedroom and 1 bathroom.
- The Dimensions of the project 17′ x 30′
- All home plans on our site can be modified.
What’s Included
- Covered Page
- Brief Specification
- Green Code Comply
- Site Plan

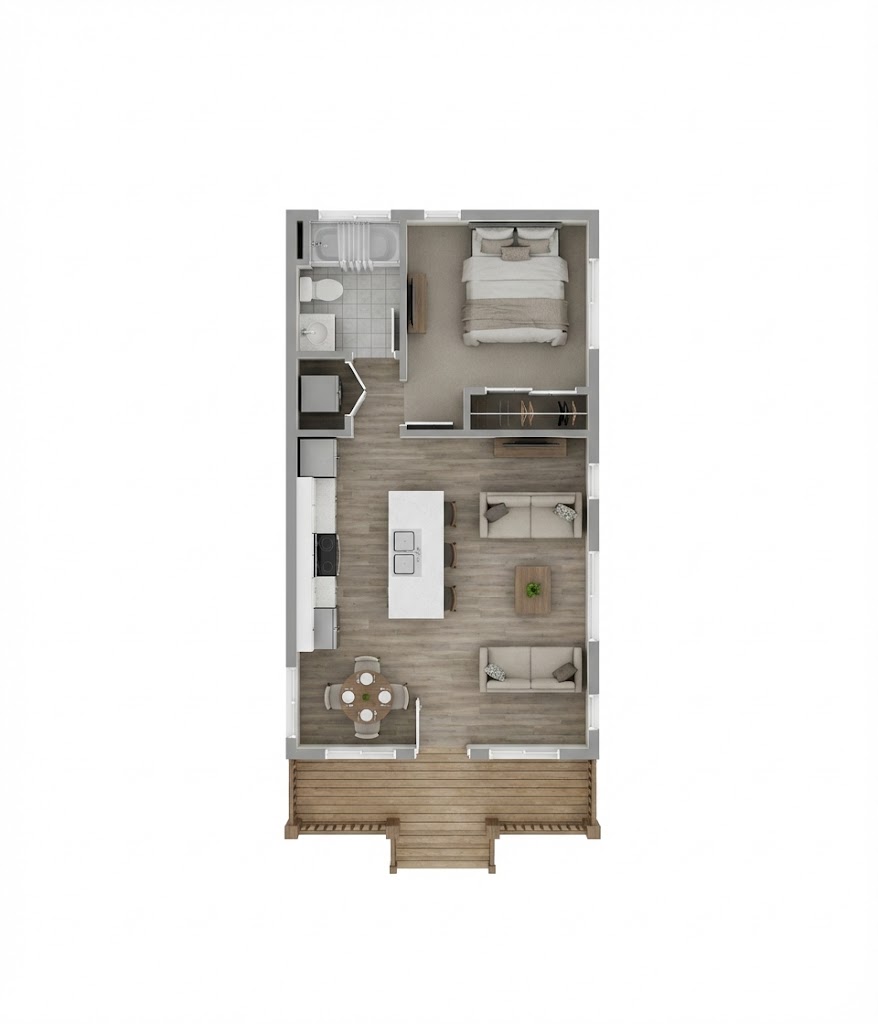

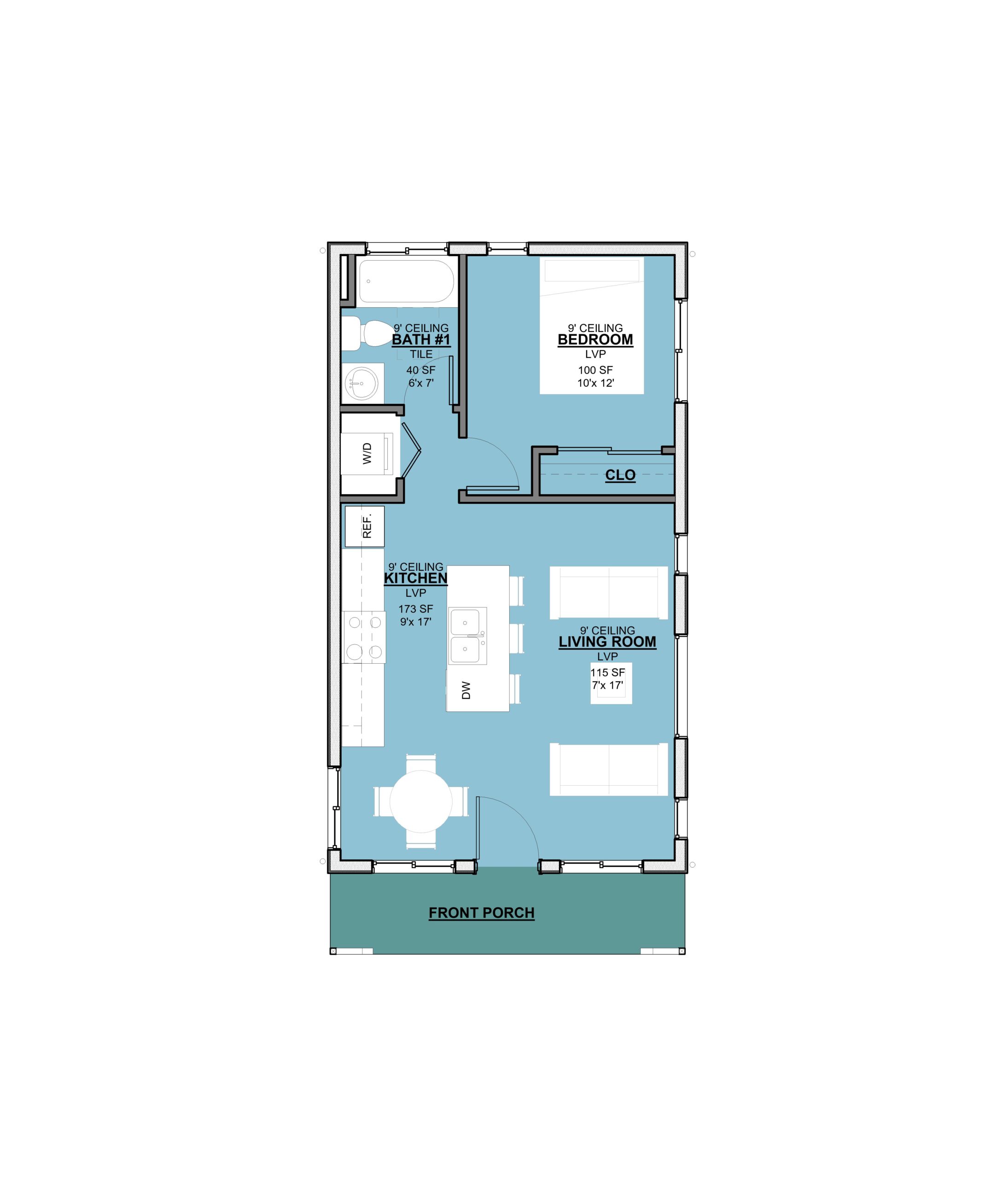

- Floor Plan

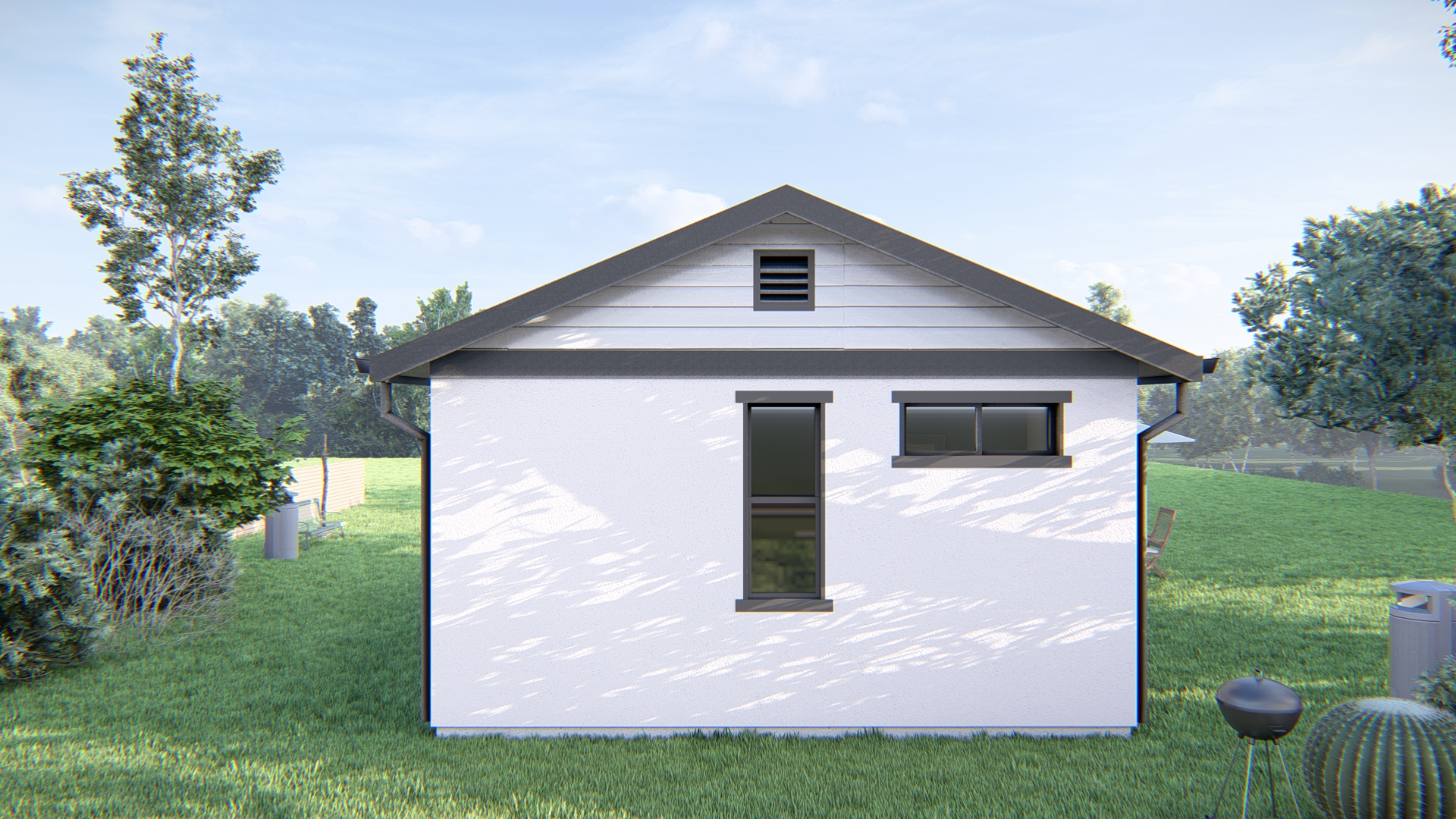

- Elevation
- Specification
- Sections
- Electrical Plan
- Architectural Details
- Foundation Plan with the Brace Wall System (Structural calcs per request)
- Structural Notes (Standard)
- Structural Details (Standard) Perspective Method
What’s NOT included
- Architectural or Engineering Stamp (If required, done locally)
- Mechanical Drawings (location of duct work, heating and air equipment – handled by subcontractors)
Specification List
- Heat pump water heater
- Room mini split system
- Microwave Hood
- Bathroom Fan
