ADU 800 – 2B/2B – #L800B2B2-4

Description

Plan Details

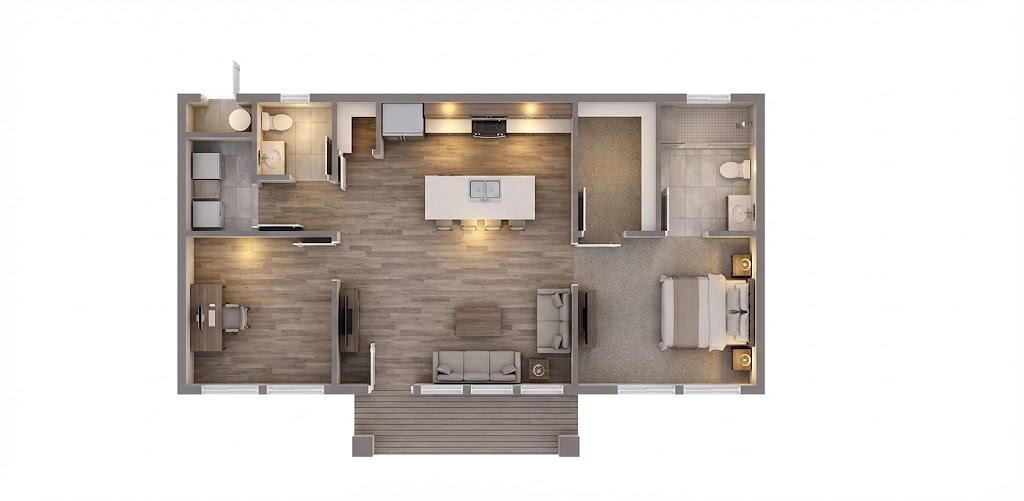

• This modern farmhouse style ADU house plan offers you 800 square feet of living space with 2 bedroom and 2 bathroom.
• The Dimensions of the project 40′ x 20′-5″
• All home plans on our site can be modified.

What’s Included

• Covered Page
• Brief Specification
• Green Code Comply
• Site Plan
• Floor Plan
• Elevation
• Specification
• Sections
• Electrical Plan
• Architectural Details
• Foundation Plan with the Brace Wall System (Structural calcs per request)
• Structural Notes (Standard)
• Structural Details (Standard) Perspective Method

What’s NOT included

• Architectural or Engineering Stamp (If required, done locally)
• Mechanical Drawings (location of duct work, heating and air equipment – handled by subcontractors)

Specification List

• Heat pump water heater
• Room mini split system
• Microwave Hood
• Bathroom Fan
