Plan Details

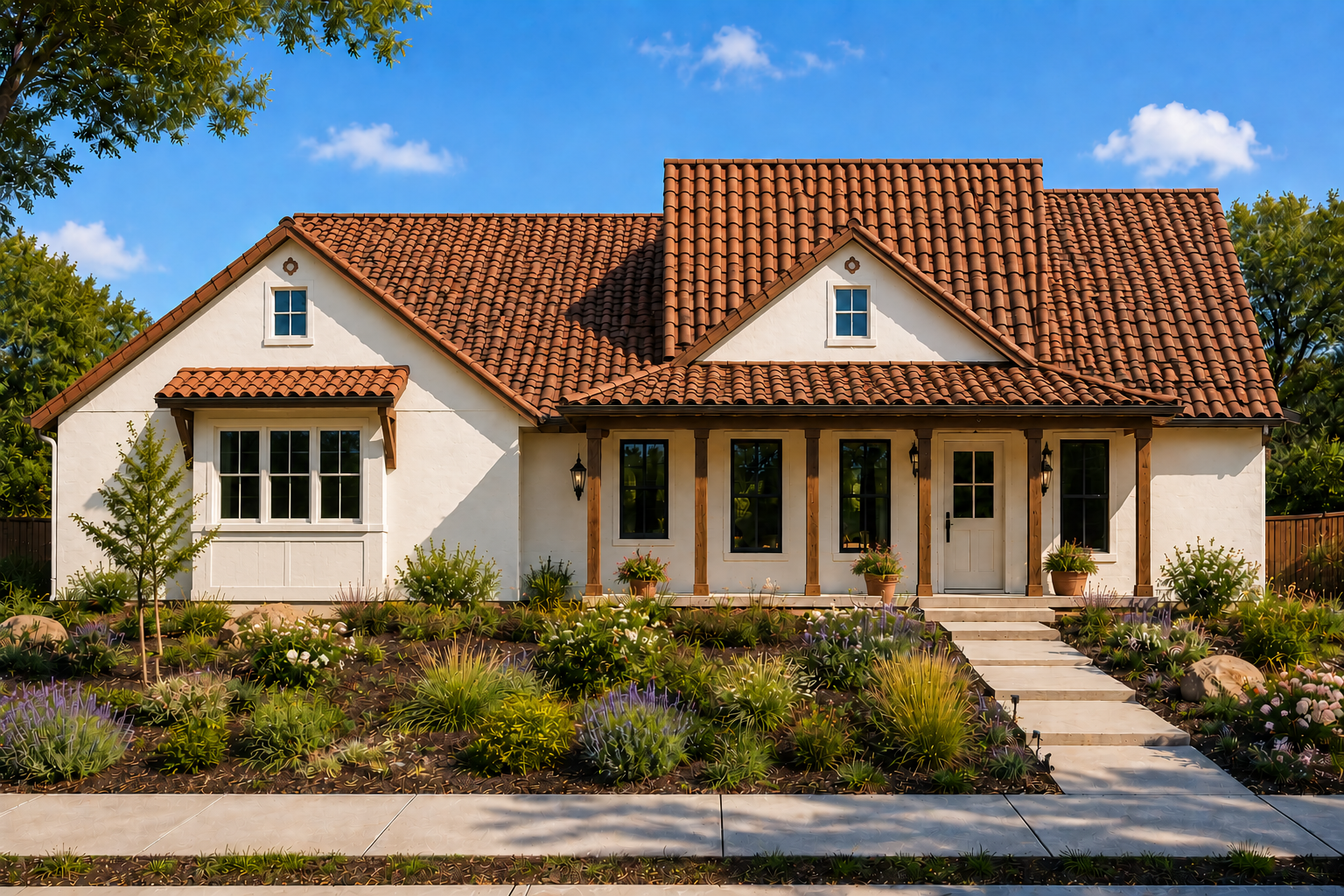

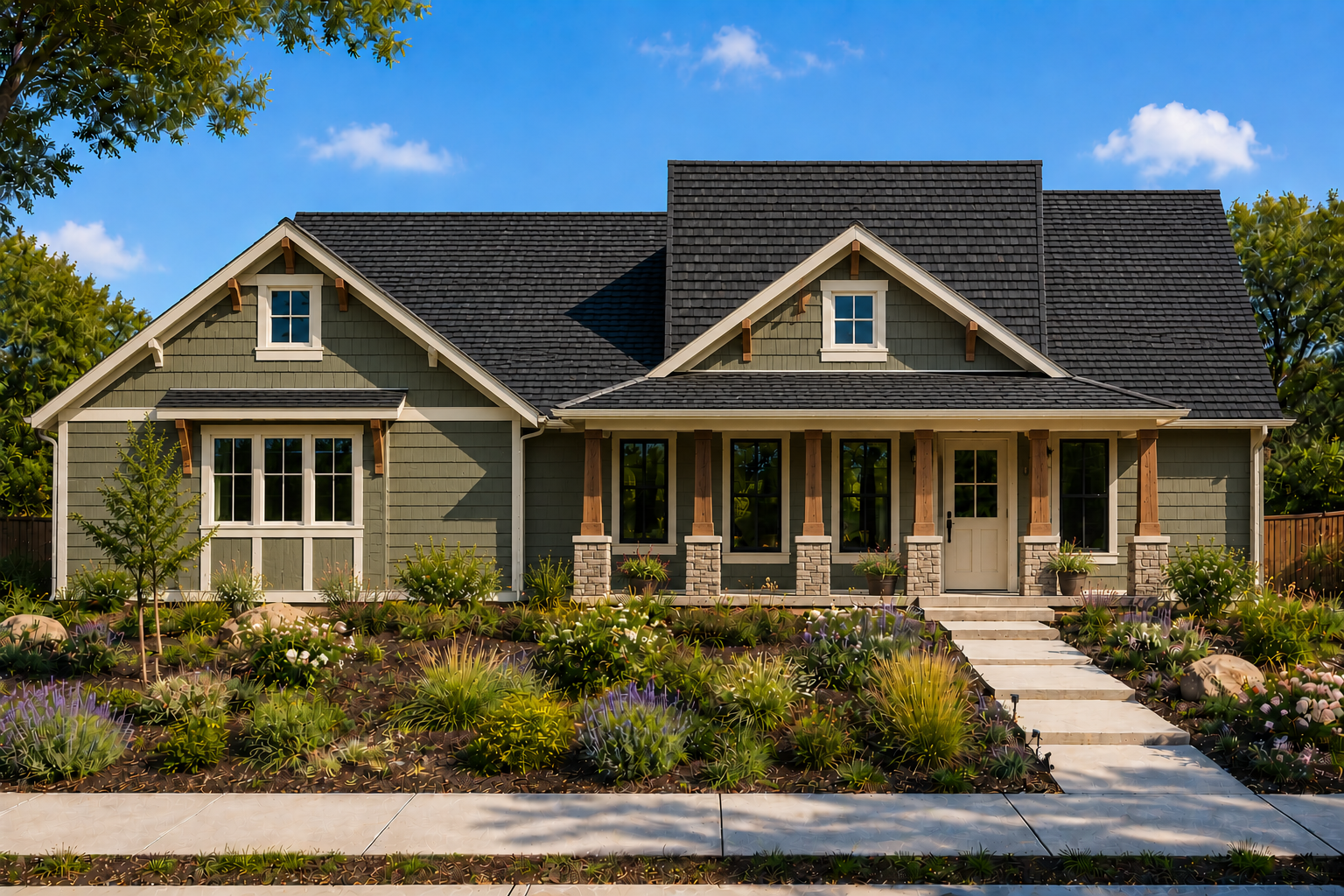

This modern farmhouse-style home plan offers 1,700 square feet of living space with 3 bedrooms and 2 bathrooms. The overall dimensions are 65′-8″ x 46′-10 1/2″. All home plans on our site can be modified.
What’s Included
-
Cover page
-
Brief specification
-
Green code comply
-
Site plan
-

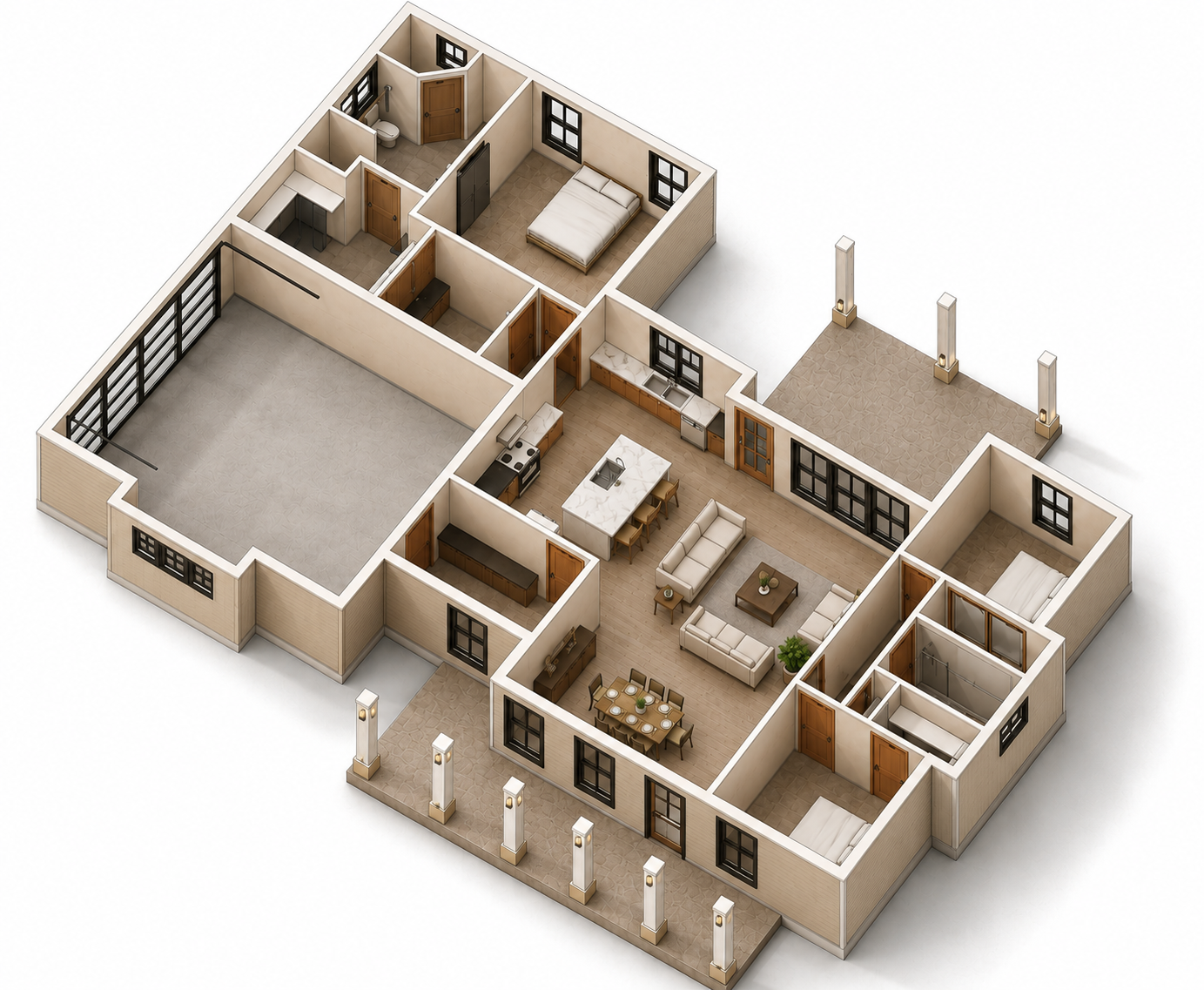

Floor plan
-
Elevations
-
Specifications
-
Sections
-
Electrical plan
-
Architectural details
-
Foundation plan with brace wall system (structural calculations per request)
-
Structural notes (standard)
-
Structural details (standard perspective method)
What’s Not Included
-
Architectural or engineering stamp (if required, done locally)
-
Mechanical drawings (location of duct work, heating, and air equipment handled by subcontractors)
Specification List
-
Heat pump water heater
-
Room mini split system
-
Microwave hood
-
Bathroom fan
